VS Racing VSB05 Long Stroke 3.5cc (.21) Competition Off-Road Buggy Engine Combo w/EFRA 2135 Pipe & L50 Manifold. 5 DAY DELIVERY:

VS Racing VSB05 Long Stroke 3.5cc (.21) Competition Off-Road Buggy Engine Combo w/EFRA 2135 Pipe & L50 Manifold. 5 DAY DELIVERY:

Regular price $1,090.20
Regular price Sale price $1,090.20
Sale Sold Out
Tax included. Shipping calculated at checkout.

5 DAY DELIVERY:

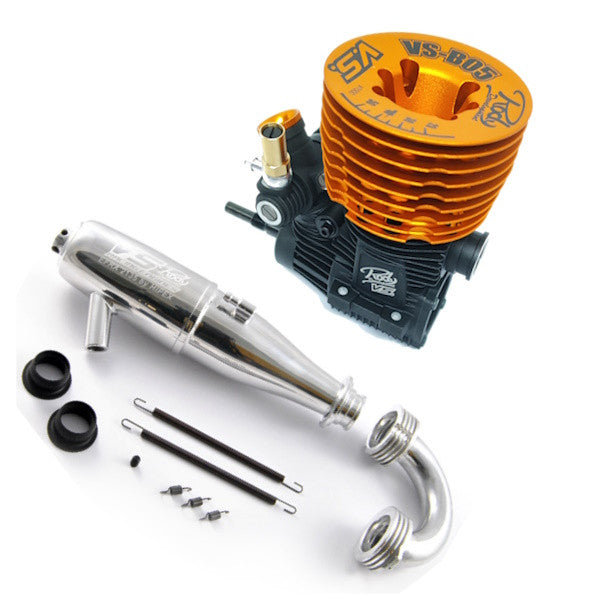

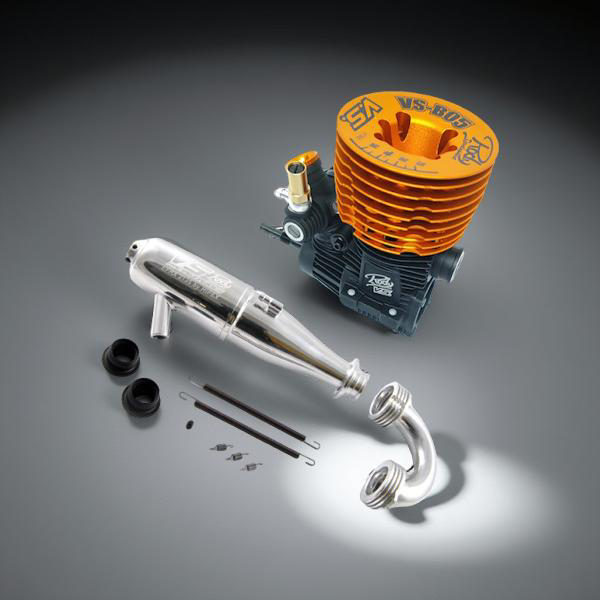

This Combo includes:
1x VSB05
1x Tuned pipe VS Racing EFRA 2135
1x Manifold L50

The new and exclusive VS Racing VSB05 long stroke .21 off-road engine is based on the very powerful O.S. Speed 21XZ-B specII and is an extraction of the world famous OS Max precision and technology together with some additional 'Rody' touch and development, equipped with a VS Spec combustion chamber with o-ring to protect this area from dirt, a 5-port sleeve and additional DLC coating on the whole crankshaft, a rear-cover with "pushplate".

The difference between the VSB04 is a new carburetor type OS22E which gives a better response and better fuel-milage.

The VS Racing VSB05 is suited for high competition 1/8scale off-road racing.
This engine is intended for "EXPIERIENCED" users.

FEATURES:

  • Long Stroke
  • Unique and Specific 5-Ports design
  • CNC machined flat piston
  • 14mm turbo crankshaft, balanced, lightened and silicone paste,DLC,'Rody'
  • Competition Conrod
  • Turbo combustion chamber VS Spec.
  • 14mm high-speed main bearing
  • 7mm high-speed front bearing with rubber protection
  • VS Spec. lightweight cooling head
  • VS Spec. Underhead and additional o-ring
  • VS Spec. Crankcase
  • VS Spec. rear-cover with 'pushplate'
  • VS spec. aluminum lightweight slide carburettor type 22E with double adjustment 6.5mm aluminum restrictor



This engine is developed to find the best balance between performances/relaiability and costs.

Tech:

Type : Off-Road
Contents : .21(3.49cc)
Bore : 16.27mm
Stroke : 16.80mm
Crankshaft : 14mm SG/SPT (buggy) DLC
Main-Bearing : 14mm HighSpeed
Front-Bearing : 7mm HighSpeed
Cylinder : ABC
Ports Intake : 5
Exhaust Port : 1
Carburator : Neck 15mm VS Spec.
Cooling-Head : Light Off-Road
Underhead : VS Spec for conical(Turbo) glowplug.
RMP : Max Power @ 30K RPM (4-40K RPM range)
Weight : 355Gr





Tuend Pipe VS 2135 EFRA by Hipex for .21 off- road engines.

Quarantees progressive power delivery at low rpm and top power at high rpm.
High fuel economy.

Recommended for VS Racing Engines and OS based off-road engines.
